BeeBlot TM - Semi Automation for Strip Based Assays

Optional heated or non-heated instrument for automating strip based assays to suit your requirements.

Once samples have been added manually, the instrument can run up to 12 different pre-programmed assays, for automating molecular based and Western Blot strip based assays.

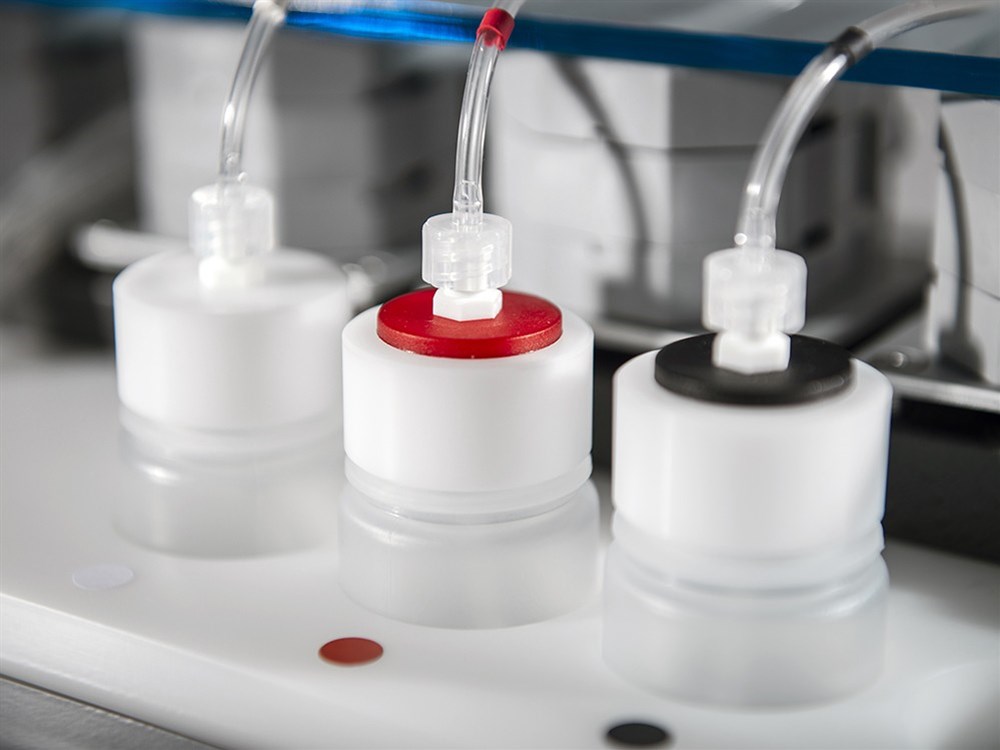

The instrument uses reversible peristaltic pumps to dispense reagents to the sample tray, and optionally from the software, the pumps can be reversed to save reagent back into the reagent bottles. The tray for the samples and membrane strips allows for rocking, tilting and level position during incubation. The operator interface is via a keypad and display. Once the samples have been added to the tray the assay is automated, and the developed strips in the tray can be removed for the analysis of the strips by eye, or using Bee's AutoCam 48 to offer automated scanning, and interpretation using third party software.

Please contact Bee Robotics for more information.
Photo of BeeBlot - semi automation for strip based assays

BeeBlot TM

Specifications
Capacity1 to 48 Molecular based assays and 1 to 50 for Western Blot assays
Power110V /240V factory set for Molecular based assays / 100V to 240V WB assays
Peristaltic Pumps1 for aspirating 6 for reagent dispense (option for 2 more)
Integral KepadYes
Integral LCD DisplayUp to 16 characters
BeeBlot TM
Photo Gallery

Roll over any thumbnail image to change main product image, click to zoom in

BeeBlot - semi automation for strip based assays Arm Display Bee Blot
